DSS
DSS
Description
Description
code
code
1
1
Speed sensor, front
Speed sensor, front
2
2
Speed sensor, rear
Speed sensor, rear
3
3
Inclination sensor
Inclination sensor
4
4
DCM
DCM
5
5
IO-Card
IO-Card
6
6
Cooling fan speed sensor
Cooling fan speed sensor
7
7
Vibration frequency meter
Vibration frequency meter
8
8
Power group 1
Power group 1
9
9
Power group 2
Power group 2
10
10
Power group 3
Power group 3
11
11
Power group 4
Power group 4
40
Supervision only active if Adjustable frequency or
Supervision only active if Adjustable frequency or
ECO available.
ECO available.
see Fuse 3
see Fuse 3
see Fuse 4
see Fuse 4
see Fuse 5
see Fuse 5
see Fuse 6
see Fuse 6
Alarms received are logged and can be seen by
selecting Display alarms.
Selection of Display alarms.
«ENGINE ALARM»
Logged engine alarms.
4812160101_A.pdf
Machine description
Note
Note
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
2014-07-04
-
Contents
-
Table of Contents
-
Bookmarks
Quick Links

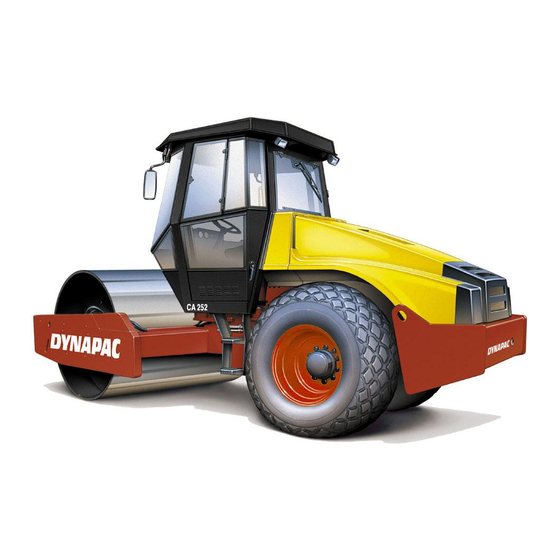

DYNAPAC
CA 252/302/402
MAINTENANCE
M252EN6
Box 504, SE-371 23 Karlskrona, Sweden
Telephone +46 455 30 60 00
Telefax +46 455 30 60 30
Web
www.dynapac.com
Related Manuals for Dynapac CA 252
Summary of Contents for Dynapac CA 252
- Page 1
DYNAPAC CA 252/302/402 MAINTENANCE M252EN6 Box 504, SE-371 23 Karlskrona, Sweden Telephone +46 455 30 60 00 Telefax +46 455 30 60 30 www.dynapac.com… - Page 2
ILF015WO1… - Page 3
CA 402D PIN (S/N) *69410402* Dynapac’s medium-range vibratory soil compactors are the CA 252/302 and CA 402. They are available in D (smooth drum) and PD (padfoot) versions, of which the CA 302D and CA 402D are designed for the compaction of rock fill. The PD versions have their major range of application on cohesive material and disintegrated rock. -
Page 4: Table Of Contents
State of diesel engine, for which the manufacturer’s California to cause cancer, birth defects, instructions are detailed in the engine manual. and other reproductive harm. This is found under a separate flap in the roller’s product binder. CA 252/302/402 M252EN6…
-
Page 5: Lubricants And Symbols
50/50 with water Anti-freeze protection down to about -41°C (-106°F). Other fuel and lubricants are required for operation in extremely high or extremely low ambient temperature. See the “Special instructions” chapter, or consult Dynapac. Engine, oil level Air pressure…
-
Page 6: Technical Specifications
Height, with cab, mm (in) 2952 (116) 2965 (117) 2952 (116) Fluid volumes, litres (gal or qts) CA 252/302/402 Rear axle: • Differential ……..12 (12.7 qts) • Planetary gears ……….2,0 (2.1 qts)/side (std. axle) • Planetary gears ……….1,85 (1.9 qts)/side (accessories axle) Drum gearbox ……….
- Page 7
0,8 (0.031) 0,8 (0.031) 0,8 (0.031) Frequency (High amplitude)Hz (vpm) 33/33 (1980) 33/33 (1980) 33/33 (1980) Centrifugal force (High amplitude)kN (lb) 300 (67,500) 300 (67,500) 300 (67,500) Centrifugal force (Low amplitude)kN (lb) 146 (32,850) 146 (32,850) 146 (32,850) CA 252/302/402 M252EN6… - Page 8
The system described in this manual is of the ACC type (Automatic Climate Control), ie, a system that maintains the set temperature in the cab, on condition that windows and doors are kept closed. Refrigerant designation: HFC-R134:A Weight of refrigerant when newly filled CA252/302/ 402=1600 gram CA 252/302/402 M252EN6… - Page 9
Guaranteed Acoustic Acoustic acoustic pressure level, pressure level, power level operator’s ear operator’s ear dB(A) LwA (platform) (cab) dB(A) dB(A) LpA CA 252/302/402 Noise level can vary when driving on different courses and with different seat positions. CA 252/302/402 M252EN6… -
Page 10: Maintenance Schedule
37. Forward/Reverse lever 11. Fuse-box 24. Rear axle suspension, 2 sides 38. Air conditioner 12. Drum cartridge, filling, 2 fillers 25. Oil filter, diesel engine 39. Fresh air filter 13. Drum gearbox 26. Drainage, fuel tank = Optional CA 252/302/402 M252EN6…
-
Page 11: Maintenance Measures
Check the wheel-nuts are tightened New machine only Check tire pressure Inspect the air conditioning Optional Lubricate the strike-off blade bearings. Optional After the first 50 hours of operation change only the drum oil and all the oil filters. CA 252/302/402 M252EN6…
- Page 12
Measure See page Comments fig. 1 9, 10 Change fluid in hydraulic reservoir 12, 15 Change oil in the drum cartridge Change oil in drum gearbox Lubricate Forward/Reverse control Inspecting the steering joint Overhaul air conditioning Optional CA 252/302/402 M252EN6… - Page 13
2. Screws CA 252PD/302PD Loosen the screws (1), then adjust the beam (2) to 25 mm between the teeth (3) and the drum. Tighten the screws (1). Fig. 4 Scrapers 1. Screws 2. Scraper beam 3. Scraper teeth CA 252/302/402 M252EN6… -
Page 14: Every 10 Hours Of Operation (Daily)
EVERY 10 HOURS OF OPERATION (Daily) CA 252-402 Soft scrapers (Optional) Loosen the screws (2) and adjust to light contact against the drum. Tighten the screws. Fig. 5 Scrapers 1. Scraper blade 2. Screws Circulation of air – Check Ensure that the engine has free circulation of cooling air through the vents in the hood.
- Page 15
(1) is between the max. – min. marks. Top off with hydraulic fluid according to the lu- bricant specification if the level is too low. Fig. 10 Hydraulic fluid reservoir 1. Sight glass 2. Filler pipe CA 252/302/402 M252EN6… - Page 16
After testing the brakes, set the forward/reverse lever (2) in neutral. Pull up the reserve/parking brake knob. Fig. 11 Control panel 1. Reserve/parking brake knob The roller is now ready for operation. 2. Forward/reverse lever CA 252/302/402 M252EN6… - Page 17
When replacing the backup filter (4), pull out the old fil- ter from its holder, insert a new one and refit the air cleaner in the reverse order to the instructions given in the figure above. Fig. 14 Air filter 4. Backup filter CA 252/302/402 M252EN6… - Page 18
Allow a little grease to remain on the nipples after lubrication, it will prevent dirt from entering. Fig. 17 Steering cylinder, right side 4. Lubricating nipple, rear right steering cylinder mount (x1) 5. Lubricating nipple, rear left steering cylinder mount (x1) CA 252/302/402 M252EN6… - Page 19
(1), which is located at the rear of the cab roof. Also clean the cooling unit inside the cab. See under the heading 2000 hours, air conditioning – overhaul. Fig. 20 Cab 1. Condenser element CA 252/302/402 M252EN6… -
Page 20: Every 50 Hours Of Operation (Weekly)
Wipe the nipples clean from grease and dirt, three on each side of the machine. Grease each nipple (1) with four strokes of the grease gun. Ensure that grease penetrates the bearings. Fig. 21 Strike-off blade 1. Lubricant nipples CA 252/302/402 M252EN6…
-
Page 21: Every 250 Hours Of Operation (Monthly)
Check the oil level in the same way in the rear axle’s other planetary gear. Fig. 23 Oil level check – planetary gear, Std. 1. Oil level/Filler plug Fig. 24 Oil level check – planetary gear, optional 1. Oil level/Filler plug CA 252/302/402 M252EN6…
- Page 22
1. Indicator pin Drum cartridge – Checking the oil level Wipe the filling plug and level plug clean from dirt. Unscrew the filling plug (1) Fig. 27 Roller, right-hand side 1. Filler plug 2. Drain plug 3. Level plug CA 252/302/402 M252EN6… - Page 23
– do not place the nozzle too close to the radiator. Fig. 30 Hydraulic fluid cooler 1. Intercooler 2. Water cooler Use protective goggles when working with 3. Hydraulic fluid cooler compressed air or a high-pressure washer. CA 252/302/402 M252EN6… - Page 24
10–15 mm (0.4-0.6 in). Use a knife blade or other pointed tool when carrying out this check. Check also that the screw fasteners (2) are tightened. Fig. 32 Roller, vibration side 1. Rubber element 2. Screw fasteners CA 252/302/402 M252EN6… - Page 25
Inspect refrigerant hoses and connections and make sure that there are no signs of oil film that could indicate leakage of refrigerant. Fig. 35 Air conditioning 1. Refrigerant hoses 2. Condenser element CA 252/302/402 M252EN6… -
Page 26: Every 500 Hours Of Operation (Every Three Months)
– Lubrication Lubricate engine hood hinges (1) and the slide rails of the operator’s seat with grease, other joints and controls with oil. Lubricate the cab hinges with grease. See lubricant specification. Fig. 38 Engine hood 1. Hinge CA 252/302/402 M252EN6…
- Page 27
(4) and move the steering column forward, tighten the screws and check the tension of the chain. Fig. 40 Seat bearing 1. Lubrication nipple 2. Cogwheel 3. Steering chain 4. Adjusting screw 5. Cover 6. Slide rails 7. Slew interlock CA 252/302/402 M252EN6… -
Page 28: Every 1000 Hours Of Operation (Every Six Months)
Remove the plug (2). Place a container under the tap. Open the tap (1) and let any trapped condensate run out. Shut the drainage tap. Fig. 43 Hydraulic reservoir, underside 1. Drainage tap Refit the plug. 2. Plug CA 252/302/402 M252EN6…
- Page 29
Refit the drainage plugs and top up with fresh oil until the correct level is reached. Refit the oil-level/filler plug. Use transmission oil, see the lubrication specification. Fig. 46 Rear axle 1. Oil level/Filler plug 2. Drainage plugs CA 252/302/402 M252EN6… - Page 30
Position the roller with the plug at 9 o’clock. Fill with oil to lower edge of level hole. Refit the plug and repeat the process on the other side. Use transmission oil. See the lubrication specification. Std. Optional Fig. 48 Planetary gear/filling position 1. Plug CA 252/302/402 M252EN6… - Page 31
Take down the whole holder and remove the filter insert. Replace with a new filter. It may be necessary to replace the filter more often if the machine is used in a dusty environment. Fig. 49 Cab 1. Fresh air filter 2. Screw (x2) CA 252/302/402 M252EN6… -
Page 32: Every 2000 Hours Of Operation (Yearly)
“Drum cartridge – checking the oil level”. Repeat the procedure on the opposite side. Fig. 52 Right side of the drum 1. Filler plug Ensure that only MOBIL SHC 629 is used in 2. Drain plug the cartridges.. 3. Level plug CA 252/302/402 M252EN6…
- Page 33
1. Screw 2. Plate 3. Cam disk Steering joint – Check Inspect the steering joint to detect any damage or cracks. Check and correct any loose bolts. Check also for any stiffness and play. Fig. 55 Steering joint CA 252/302/402 M252EN6… - Page 34
Check the drain by squeezing the valves (2) underneath the cab. Fig. 57 Aircondition 1. Cooling element 2. Drain valve (x2) CA 252/302/402 M252EN6… - Page 35
The cooling system is pressurized. Incorrect handling can result in serious personal injuries. The system contains pressurized refriger- ant. Releasing refrigerants into the air is prohibited. The refrigerant circuit may only be repaired by an authorized company. CA 252/302/402 M252EN6… -
Page 36: Long-Term Storage
* Place the instrument cover on the steering column. Covers, tarpaulin Cover the entire machine with a tarpaulin, which should hand some way off the ground. If possible, store the roller indoors, preferably in a building with a uniform temperature. CA 252/302/402 M252EN6…
-
Page 37: Special Instructions
When an auxiliary starter battery is used, always Starting assistance connect the positive terminal on the auxiliary battery to the positive terminal on the roller’s battery, and negative to negative. CA 252/302/402 M252EN6…
-
Page 38: Electrical System, Fuses
7.5A 4. Anti-spin 5. Direction indicator, left, front, rear and side 5. Windscreen wiper, utility cab 6. Direction indicator, right, front, rear and side 6. Interior lighting, utility cab = Optional * When driving lights are fitted CA 252/302/402 M252EN6…
- Page 39
2. Main fuses 3. Preheater relay Relays VBS relay Main relay Horn relay Hourmeter relay Fuel level relay Reverse alarm relay Lights relay Direction indicator relay Brakes relay Air cond. relay = Optional Fig. 65 Instrument panel CA 252/302/402 M252EN6… - Page 40
Fig. 66 Cab roof, front 1. Instrument plate 2. K30 Relay for air conditioner fan 3. K31 Relay for condenser fans + radio 4. Fuse box CA 252/302/402 M252EN6…
-
Contents
-
Table of Contents
-
Bookmarks
Quick Links
DYNAPAC
CA 252/302/402
MAINTENANCE
M252EN6
Box 504, SE-371 23 Karlskrona, Sweden
Telephone +46 455 30 60 00
Telefax +46 455 30 60 30
Web
www.dynapac.com
Related Manuals for Dynapac CA 252
Summary of Contents for Dynapac CA 252
- Page 1
DYNAPAC CA 252/302/402 MAINTENANCE M252EN6 Box 504, SE-371 23 Karlskrona, Sweden Telephone +46 455 30 60 00 Telefax +46 455 30 60 30 www.dynapac.com… - Page 2
ILF015WO1… - Page 3
CA 402D PIN (S/N) *69410402* Dynapac’s medium-range vibratory soil compactors are the CA 252/302 and CA 402. They are available in D (smooth drum) and PD (padfoot) versions, of which the CA 302D and CA 402D are designed for the compaction of rock fill. The PD versions have their major range of application on cohesive material and disintegrated rock. -
Page 4: Table Of Contents
State of diesel engine, for which the manufacturer’s California to cause cancer, birth defects, instructions are detailed in the engine manual. and other reproductive harm. This is found under a separate flap in the roller’s product binder. CA 252/302/402 M252EN6…
-
Page 5: Lubricants And Symbols
50/50 with water Anti-freeze protection down to about -41°C (-106°F). Other fuel and lubricants are required for operation in extremely high or extremely low ambient temperature. See the “Special instructions” chapter, or consult Dynapac. Engine, oil level Air pressure…
-
Page 6: Technical Specifications
Height, with cab, mm (in) 2952 (116) 2965 (117) 2952 (116) Fluid volumes, litres (gal or qts) CA 252/302/402 Rear axle: • Differential ……..12 (12.7 qts) • Planetary gears ……….2,0 (2.1 qts)/side (std. axle) • Planetary gears ……….1,85 (1.9 qts)/side (accessories axle) Drum gearbox ……….
- Page 7
0,8 (0.031) 0,8 (0.031) 0,8 (0.031) Frequency (High amplitude)Hz (vpm) 33/33 (1980) 33/33 (1980) 33/33 (1980) Centrifugal force (High amplitude)kN (lb) 300 (67,500) 300 (67,500) 300 (67,500) Centrifugal force (Low amplitude)kN (lb) 146 (32,850) 146 (32,850) 146 (32,850) CA 252/302/402 M252EN6… - Page 8
The system described in this manual is of the ACC type (Automatic Climate Control), ie, a system that maintains the set temperature in the cab, on condition that windows and doors are kept closed. Refrigerant designation: HFC-R134:A Weight of refrigerant when newly filled CA252/302/ 402=1600 gram CA 252/302/402 M252EN6… - Page 9
Guaranteed Acoustic Acoustic acoustic pressure level, pressure level, power level operator’s ear operator’s ear dB(A) LwA (platform) (cab) dB(A) dB(A) LpA CA 252/302/402 Noise level can vary when driving on different courses and with different seat positions. CA 252/302/402 M252EN6… -
Page 10: Maintenance Schedule
37. Forward/Reverse lever 11. Fuse-box 24. Rear axle suspension, 2 sides 38. Air conditioner 12. Drum cartridge, filling, 2 fillers 25. Oil filter, diesel engine 39. Fresh air filter 13. Drum gearbox 26. Drainage, fuel tank = Optional CA 252/302/402 M252EN6…
-
Page 11: Maintenance Measures
Check the wheel-nuts are tightened New machine only Check tire pressure Inspect the air conditioning Optional Lubricate the strike-off blade bearings. Optional After the first 50 hours of operation change only the drum oil and all the oil filters. CA 252/302/402 M252EN6…
- Page 12
Measure See page Comments fig. 1 9, 10 Change fluid in hydraulic reservoir 12, 15 Change oil in the drum cartridge Change oil in drum gearbox Lubricate Forward/Reverse control Inspecting the steering joint Overhaul air conditioning Optional CA 252/302/402 M252EN6… - Page 13
2. Screws CA 252PD/302PD Loosen the screws (1), then adjust the beam (2) to 25 mm between the teeth (3) and the drum. Tighten the screws (1). Fig. 4 Scrapers 1. Screws 2. Scraper beam 3. Scraper teeth CA 252/302/402 M252EN6… -
Page 14: Every 10 Hours Of Operation (Daily)
EVERY 10 HOURS OF OPERATION (Daily) CA 252-402 Soft scrapers (Optional) Loosen the screws (2) and adjust to light contact against the drum. Tighten the screws. Fig. 5 Scrapers 1. Scraper blade 2. Screws Circulation of air – Check Ensure that the engine has free circulation of cooling air through the vents in the hood.
- Page 15
(1) is between the max. – min. marks. Top off with hydraulic fluid according to the lu- bricant specification if the level is too low. Fig. 10 Hydraulic fluid reservoir 1. Sight glass 2. Filler pipe CA 252/302/402 M252EN6… - Page 16
After testing the brakes, set the forward/reverse lever (2) in neutral. Pull up the reserve/parking brake knob. Fig. 11 Control panel 1. Reserve/parking brake knob The roller is now ready for operation. 2. Forward/reverse lever CA 252/302/402 M252EN6… - Page 17
When replacing the backup filter (4), pull out the old fil- ter from its holder, insert a new one and refit the air cleaner in the reverse order to the instructions given in the figure above. Fig. 14 Air filter 4. Backup filter CA 252/302/402 M252EN6… - Page 18
Allow a little grease to remain on the nipples after lubrication, it will prevent dirt from entering. Fig. 17 Steering cylinder, right side 4. Lubricating nipple, rear right steering cylinder mount (x1) 5. Lubricating nipple, rear left steering cylinder mount (x1) CA 252/302/402 M252EN6… - Page 19
(1), which is located at the rear of the cab roof. Also clean the cooling unit inside the cab. See under the heading 2000 hours, air conditioning – overhaul. Fig. 20 Cab 1. Condenser element CA 252/302/402 M252EN6… -
Page 20: Every 50 Hours Of Operation (Weekly)
Wipe the nipples clean from grease and dirt, three on each side of the machine. Grease each nipple (1) with four strokes of the grease gun. Ensure that grease penetrates the bearings. Fig. 21 Strike-off blade 1. Lubricant nipples CA 252/302/402 M252EN6…
-
Page 21: Every 250 Hours Of Operation (Monthly)
Check the oil level in the same way in the rear axle’s other planetary gear. Fig. 23 Oil level check – planetary gear, Std. 1. Oil level/Filler plug Fig. 24 Oil level check – planetary gear, optional 1. Oil level/Filler plug CA 252/302/402 M252EN6…
- Page 22
1. Indicator pin Drum cartridge – Checking the oil level Wipe the filling plug and level plug clean from dirt. Unscrew the filling plug (1) Fig. 27 Roller, right-hand side 1. Filler plug 2. Drain plug 3. Level plug CA 252/302/402 M252EN6… - Page 23
– do not place the nozzle too close to the radiator. Fig. 30 Hydraulic fluid cooler 1. Intercooler 2. Water cooler Use protective goggles when working with 3. Hydraulic fluid cooler compressed air or a high-pressure washer. CA 252/302/402 M252EN6… - Page 24
10–15 mm (0.4-0.6 in). Use a knife blade or other pointed tool when carrying out this check. Check also that the screw fasteners (2) are tightened. Fig. 32 Roller, vibration side 1. Rubber element 2. Screw fasteners CA 252/302/402 M252EN6… - Page 25
Inspect refrigerant hoses and connections and make sure that there are no signs of oil film that could indicate leakage of refrigerant. Fig. 35 Air conditioning 1. Refrigerant hoses 2. Condenser element CA 252/302/402 M252EN6… -
Page 26: Every 500 Hours Of Operation (Every Three Months)
– Lubrication Lubricate engine hood hinges (1) and the slide rails of the operator’s seat with grease, other joints and controls with oil. Lubricate the cab hinges with grease. See lubricant specification. Fig. 38 Engine hood 1. Hinge CA 252/302/402 M252EN6…
- Page 27
(4) and move the steering column forward, tighten the screws and check the tension of the chain. Fig. 40 Seat bearing 1. Lubrication nipple 2. Cogwheel 3. Steering chain 4. Adjusting screw 5. Cover 6. Slide rails 7. Slew interlock CA 252/302/402 M252EN6… -
Page 28: Every 1000 Hours Of Operation (Every Six Months)
Remove the plug (2). Place a container under the tap. Open the tap (1) and let any trapped condensate run out. Shut the drainage tap. Fig. 43 Hydraulic reservoir, underside 1. Drainage tap Refit the plug. 2. Plug CA 252/302/402 M252EN6…
- Page 29
Refit the drainage plugs and top up with fresh oil until the correct level is reached. Refit the oil-level/filler plug. Use transmission oil, see the lubrication specification. Fig. 46 Rear axle 1. Oil level/Filler plug 2. Drainage plugs CA 252/302/402 M252EN6… - Page 30
Position the roller with the plug at 9 o’clock. Fill with oil to lower edge of level hole. Refit the plug and repeat the process on the other side. Use transmission oil. See the lubrication specification. Std. Optional Fig. 48 Planetary gear/filling position 1. Plug CA 252/302/402 M252EN6… - Page 31
Take down the whole holder and remove the filter insert. Replace with a new filter. It may be necessary to replace the filter more often if the machine is used in a dusty environment. Fig. 49 Cab 1. Fresh air filter 2. Screw (x2) CA 252/302/402 M252EN6… -
Page 32: Every 2000 Hours Of Operation (Yearly)
“Drum cartridge – checking the oil level”. Repeat the procedure on the opposite side. Fig. 52 Right side of the drum 1. Filler plug Ensure that only MOBIL SHC 629 is used in 2. Drain plug the cartridges.. 3. Level plug CA 252/302/402 M252EN6…
- Page 33
1. Screw 2. Plate 3. Cam disk Steering joint – Check Inspect the steering joint to detect any damage or cracks. Check and correct any loose bolts. Check also for any stiffness and play. Fig. 55 Steering joint CA 252/302/402 M252EN6… - Page 34
Check the drain by squeezing the valves (2) underneath the cab. Fig. 57 Aircondition 1. Cooling element 2. Drain valve (x2) CA 252/302/402 M252EN6… - Page 35
The cooling system is pressurized. Incorrect handling can result in serious personal injuries. The system contains pressurized refriger- ant. Releasing refrigerants into the air is prohibited. The refrigerant circuit may only be repaired by an authorized company. CA 252/302/402 M252EN6… -
Page 36: Long-Term Storage
* Place the instrument cover on the steering column. Covers, tarpaulin Cover the entire machine with a tarpaulin, which should hand some way off the ground. If possible, store the roller indoors, preferably in a building with a uniform temperature. CA 252/302/402 M252EN6…
-
Page 37: Special Instructions
When an auxiliary starter battery is used, always Starting assistance connect the positive terminal on the auxiliary battery to the positive terminal on the roller’s battery, and negative to negative. CA 252/302/402 M252EN6…
-
Page 38: Electrical System, Fuses
7.5A 4. Anti-spin 5. Direction indicator, left, front, rear and side 5. Windscreen wiper, utility cab 6. Direction indicator, right, front, rear and side 6. Interior lighting, utility cab = Optional * When driving lights are fitted CA 252/302/402 M252EN6…
- Page 39
2. Main fuses 3. Preheater relay Relays VBS relay Main relay Horn relay Hourmeter relay Fuel level relay Reverse alarm relay Lights relay Direction indicator relay Brakes relay Air cond. relay = Optional Fig. 65 Instrument panel CA 252/302/402 M252EN6… - Page 40
Fig. 66 Cab roof, front 1. Instrument plate 2. K30 Relay for air conditioner fan 3. K31 Relay for condenser fans + radio 4. Fuse box CA 252/302/402 M252EN6…
- Manuals
- Brands
- Dynapac Manuals
- Construction Equipment
- CA500 Series
- Maintenance manual
-
Contents
-
Table of Contents
-
Bookmarks
Quick Links
DYNAPAC
CA500
MAINTENANCE
M500EN1
Box 504, SE-371 23 Karlskrona, Sweden
Phone: +46 455 30 60 00, Fax: +46 455 30 60 30
www.dynapac.com
Related Manuals for Dynapac CA500 Series
Summary of Contents for Dynapac CA500 Series
-
Page 1
DYNAPAC CA500 MAINTENANCE M500EN1 Box 504, SE-371 23 Karlskrona, Sweden Phone: +46 455 30 60 00, Fax: +46 455 30 60 30 www.dynapac.com… -
Page 2
ILF015WO1… -
Page 3
CA500 PIN (S/N) *79290607* The Dynapac CA500 is available in D (smooth drum) and PD (padfoot) versions, of which the CA500D is designed for compacting rock fill. The main range of application for the PD versions is on cohesive material and weathered stone material. -
Page 4: Table Of Contents
CONTENTS Page Lubricants and symbols………… 3 Technical specifications ……….4-6 Maintenance schedule…………7 Maintenance measures ……….8, 9 Every 10 hours of operation (Daily) ……10-13 Every 50 hours of operation (Weekly) ……. 14-16 Every 250 hours of operation (Monthly) ….17-21 Every 500 hours of operation (Every three months)..
-
Page 5: Lubricants And Symbols
Shell Anti Freeze 402 or equivalent. 50/50 mixture with water Anti-freeze down to about -35°C (-31°F). Other lubricants are required for driving in extremely high or low ambient temperatures. See the “Special instructions” chapter, or consult Dynapac. Engine, oil level Air filter Engine, oil filter…
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Weight and sizes CA500D CA500PD Operating mass with ROPS, EN500, kg (lbs)……….15400 (34,000) ….15600 (34,400) Operating mass without ROPS, kg (lbs) ..14900 (32,900) ….15100 (33,300) Operating mass with cab, kg (lbs) ….15400 (34,000) ….15600 (34,400) Length, standard-equipped roller, mm (in)…………5999 (236) ….5999 (236) Width, standard-equipped roller, mm (in) ..2350 (93) …..2350 (93) Height, with ROPS, mm (in) ……2929 (115) ….2987 (117) Height, with ROPS/silencer, mm (in) ….2190 (86) ……2208 (87)
-
Page 7
TECHNICAL SPECIFICATIONS Tightening torque Tightening torque in Nm (lbf.ft) for oiled, bright galvani- zed bolts tightened with a torque wrench. STRENGTH CLASS thread 10.9 12.9 8,4 (6.2) 12 (8.9) 14,6 (10.8) 21 (15.5) 28 (20.7) 34 (21.1) 40 (15.5) 56 (41.3) 68 (25.1) 70 (51.6) 98 (72.3) -
Page 8
TECHNICAL SPECIFICATIONS Vibrations – Drivers seat The vibration values are measured in conformance (ISO 2631) with the operation cycle described in EU directive 2000/14/EC, on soft polymer material with vibration switched ON. Operator’s station, vibration, hand/arm (steering wheel/lever): Below limit value. Limit value: <2.5 m/s Operator’s station, vibration, entire body (operator’s seat):… -
Page 9: Maintenance Schedule
MAINTENANCE SCHEDULE Fig. 1 Service points 1. Radiator grille 13. Scrapers 25. Draining, fuel tank 2. Oil level, diesel engine 14. Drum cartridge oil, level plug, x2 26. Engine suspension, x4 3. Fuel filter, fuel pre-filter 15. Rubber elements and fastening screws 27.
-
Page 10: Maintenance Measures
MAINTENANCE MEASURES Perform periodic maintenance measures daily, weekly, etc. whichever comes first, or after the stipulated hours of operation. Remove all dirt before filling, when checking oils and fuel, and when lubricating with oil or grease. The manufacturer’s instructions noted in the engine manual also apply.
-
Page 11: Every 250 Hours Of Operation (Monthly)
MAINTENANCE MEASURES Every 250 hours of operation (monthly) Items in Measure See page Comments fig. 1 Check the oil level in the rear axle/planetary gearing Change engine oil and oil filter See engine instruction manual Check oil level in the gearbox Accessory D/PD Check oil level in the drum cartridge 18, 19…
-
Page 12
EVERY 10 HOURS OF OPERATION (Daily) Scrapers – Checking/Adjusting Remember that the drum tends to move as the machine turns. Consequently, if adjust- ments are made closer than the values noted below, the scrapers may be damaged or the drum may wear more than usual.v If required, adjust distance to the drum as follows: Loosen the screws (2) and adjust to 20 mm (0.8 in). -
Page 13
EVERY 10 HOURS OF OPERATION (Daily) Air circulation – Check Ensure that the engine has unimpeded circulation of cooling air through the protective grille to the engine. Observe caution if the filler cap must be opened while the engine is hot. NB. -
Page 14
EVERY 10 HOURS OF OPERATION (Daily) Engine – Checking the oil level Place the roller on a level base. The engine must be switched off and the parking brake applied for all checking and adjustments on the roller unless stated otherwise. Observe caution. -
Page 15
EVERY 10 HOURS OF OPERATION (Daily) Brakes – Check Check brake operation as follows: Drive the roller slowly forward. Press down the reserve/parking brake knob (1). The brake warning lamp (3) on the instrument panel should light and the roller should stop. After testing the brakes, set the forward/reverse lever (2) in neutral. -
Page 16
EVERY 50 HOURS OF OPERATION (Weekly) Air cleaner – Checking/cleaning Place the roller on a level surface. Switch the engine off and push in the reserve/par- king brake knob for all checking and ad- justments on the roller, unless otherwise specified. -
Page 17
EVERY 50 HOURS OF OPERATION (Weekly) Steering joint/Steering cylinders – Lubrication Place the roller on a level base. The engine must be switched off and the parking brake applied for all checking and adjustments on the roller unless stated otherwise. Allow no one to get near the steering joint when the engine is running. -
Page 18
EVERY 50 HOURS OF OPERATION (Weekly) Tire pressure Wheel nuts – Tightening Check the tire pressure with a pressure gauge. When the tires are filled with liquid the air pressure valve (1) must be set at «12 o’clock» when checking or pumping. -
Page 19
EVERY 250 HOURS OF OPERATION (Monthly) Rear axle differential – Checking the oil level Place the roller on a level base. The engine must be switched off and the parking brake applied for all checking and adjustments on the roller unless stated otherwise. Never work under the roller with the engine running. -
Page 20
EVERY 250 HOURS OF OPERATION (Monthly) Drum gearbox – Checking the oil level Position the roller with the filler plugs (2) straight up. Wipe clean round the level plug (1) and unscrew it. Ensure that the oil level reaches up to the lower edge of the plug hole. -
Page 21
EVERY 250 HOURS OF OPERATION (Monthly) Drum cartridge Unscrew the level plug (3) at the bottom of the cart- ridge until the hole in the middle of the plug becomes visible. Top off with oil through the filling plug (1), until oil begins to run out from the level-plug hole. -
Page 22
EVERY 250 HOURS OF OPERATION (Monthly) Coolers – Checking/cleaning Open the engine cover to gain access to the water and hydraulic coolers. Ensure that the flow of air through the coolers (1) and (2) is unobstructed. Clean a dirty radiator using compressed air or a high- pressure water jet. -
Page 23
EVERY 250 HOURS OF OPERATION (Monthly) Battery – Checking the electrolyte level Never use an open flame when checking the electrolyte level. Explosive gas is gene- rated when the alternator is charging. Open the cover and release the quick-screws (1). Lift the battery cover (2). -
Page 24
EVERY 500 HOURS OF OPERATION (Every three months) Fuel pre-filter – Cleaning Place the roller on a level base. The engine must be switched off and the parking brake applied for all checking and adjustments on the roller unless stated otherwise. When water or sediment is visible in the plastic bowl (3) drain the bowl by opening the drain valve (2). -
Page 25
EVERY 1000 HOURS OF OPERATION (Every six months) Hydraulic filter – Replacement Place the roller on a level base. The engine must be switched off and the parking brake applied for all checking and adjustments on the roller unless stated otherwise. Loosen the cap/breather filter (2) on top of the reser- voir to relieve any excess pressure inside. -
Page 26
EVERY 1000 HOURS OF OPERATION (Every six months) Hydraulic reservoir – Draining Condensation in the hydraulic reservoir is drained via the drain plug (1). Drain only after the roller has stood still during a long period, for example, overnight. Drain as follows: Remove the plug (2). -
Page 27
EVERY 1000 HOURS OF OPERATION (Every six months) Rear axle differential – Oil change Never work under the roller with the engine running. Park on a level surface and block the wheels securely. Wipe clean and remove the level/filler plug (1) and all five drain plugs (2) and drain the oil into a suitable re- ceptacle. -
Page 28
EVERY 1000 HOURS OF OPERATION (Every six months) Rear axle planetary gearing – Oil change Position the roller with the plug (1) at its lowest position. Wipe clean, unscrew the plug (1) and drain the oil into a suitable receptacle. The volume is about 2 litres (2.1 qts). -
Page 29
EVERY 2000 HOURS OF OPERATION (Yearly) Hydraulic reservoir – Changing the fluid Place the roller on a level surface. Switch the engine off and push in the reserve/parking brake knob for all checking and adjust- ments on the roller, unless otherwise speci- fied. -
Page 30
EVERY 2000 HOURS OF OPERATION (Yearly) Drum gearbox – Oil change Place the roller on a level surface with the plugs (1) and (2) as illustrated. Wipe clean, unscrew the plugs (1, 2 and 3) and drain the oil into a suitable receptacle, capacity about 3 liters (3.2 qts). -
Page 31: Long-Term Storage
LONG-TERM STORAGE Follow these instructions for storage longer than one month: The measures apply for a period of up to 6 months. The items marked * must be restored before using the roller. Fig. 46 Roller protected against the weather Diesel engine * See manufacturer’s instructions in the engine ma- nual that accompanies the roller.
-
Page 32: Special Instructions
SPECIAL INSTRUCTIONS Standard oils and other recom- Upon delivery from the factory, the various systems mended fluids and components are filled with the oils specified see lubricant specification and they can be used at ambient temperatures from -10°C to +40°C (14°F — 104°F). A maximum temperature of +35°C (95°F) app- lies for biological hydraulic fluid.
-
Page 33: Electrical System, Fuses
ELECTRICAL SYSTEM, FUSES Fuses and relays The electrical regulating and control system is protec- ted by fuses and relays. The number depends on how much additional equipment the machine is prepared for. The two fuse boxes (3, 4) and the relays (5, 6, 7,
are located behind the lower instrument plate, which is removed by unscrewing the screws (1 and 2). -
Page 34
ELECTRICAL SYSTEM, FUSES Fuse boxes in steering column Fig. shows the rating and function of the different fuses. All fuses are flat pin fuses. Fig. 49 Fuse box, left side Fuse box, right side 7.5A 1. Hourmeter 7.5A 1. High/Low gear 7.5A 2.
Dynapac operator’s, electrical wiring diagrams, workshop, service and repair manuals, spare parts catalogs, error codes in PDF download
|
Title |
File Size |
Download Links |
|
Dynapac BA41 / BB Series Instructions And Spare Parts Catalogue |
1.3Mb |
Download |
|
Dynapac CA 150 Operation & Maintenance Manual [PDF] |
692.4kb |
Download |
|
Dynapac CA 150 / 152 Workshop Manual [PDF] |
391.5kb |
Download |
|
Dynapac CA 252 / 302 / 402 Operation & Maintenance Manual |
483.5kb |
Download |
|
Dynapac CA2500 / 2800 / 3500 / 4000 Operation & Maintenance |
21Mb |
Download |
|
Dynapac CC 501 / 501C Operation & Maintenance Manual [PDF] |
394.6kb |
Download |
|
Dynapac CC-900 Spare Parts Catalogue [PDF] |
1.3Mb |
Download |
|
Dynapac CC1000 Spare Parts Catalogue [PDF] |
3.4Mb |
Download |
|
Dynapac CC122 TEchnical Specifications [PDF] |
651.3kb |
Download |
|
Dynapac CC224 Electric Wiring Diagrams [PDF] |
77.5kb |
Download |
|
Dynapac CC324HF Spare Parts Catalogue [PDF] |
3Mb |
Download |
|
Dynapac CC424CHF / CC524CHF Operation & Maintenance Manual |
4.3Mb |
Download |
|
Dynapac CC624H Operation & Maintenance Manual [PDF] |
6.2Mb |
Download |
|
Dynapac CC800 / 900 / 1000 Operation & Maintenance Manual |
11.9Mb |
Download |
|
Dynapac F1000W T4f Operation & Maintenance Manual [PDF] |
49.5Mb |
Download |
|
Dynapac F1250CS Operation & Maintenance Manual [PDF] |
12Mb |
Download |
|
Dynapac F80W Workshop Manual [PDF] |
46.9Mb |
Download |
|
Dynapac ICC1200C-1EN3 Operation & Maintenance Manual [PDF] |
4.5Mb |
Download |
|
Dynapac LT600 / 700 Operation & Maintenance Manual [PDF] |
455kb |
Download |
|
Dynapac SCC102 Spare Parts Catalogue [PDF] |
2.7Mb |
Download |
|
Dynapac SD2500C / SD2500CS Paver Finisher Operation & Maintenance |
16.6Mb |
Download |
|
Dynapac SD2550C / SD2550CS Operation & Maintenance Manual |
17.4Mb |
Download |
The company is one of the leading world suppliers of such road-building equipment such as: road mills, asphalt puppiders, road and asphalt rinks Dynapac, vibrors, vibration stations. It is also
worth noting that the Patent for the asphalt stackers of Svedala Demag was purchased by Dynapac. These asphalt stimulars are made under the Dynapac brand of the SD series.
Dynapac road cutters, asphalt pavers and other equipment are produced at factories in Sweden, France, Brazil, India, Germany, China. The company’s headquarters is located in Stockholm, Sweden.
The history of Dynapac. In 1934, on the basis of the acquisition of a patent on the vibrational seal of concrete in Stockholm, Sweden, AB Vibro-Betong was founded.
- In 1941, a plant was opened in Jungby, Sweden
- In 1947, the first vibrating plate was released.
- 1946 — the first plant was opened outside of Sweden, in the United States of America.
- 1948-opening of a research laboratory.
- 1953 — release of the first vibration rink.
- 1958 — the foundation of the factory for the production of road equipment in Brazil.
- 1973 — the company is called Dynapac AB, which is known to the present.
- 1981 — Dynapac sales are growing, the company begins to expand production space. In the same year, the Japanese manufacturer of Watanabe rollers is acquired. Three years later, Dynapac has
been bought out by the German Hoes, which specialized in the production of asphalt stimulars. - 1993 — the creation of a joint venture between Hitachi and Dynapac AB.
- In 1995, Dynapac again acquires a company for the production of asphalt -layers. This time Demag Schrader.
- 2001 — the opening of the plant in China. In 2006 — in the USA.
- In 2007, Dynapac became a member of the International ATlas Copco concern.
-
SVEDALA COMPACTION AND PAVING
Svedala Compaction Equipment ABBox 504, SE-371 23 Karlskrona,
SwedenTelephone +46 455 30 60 00Telefax +46 455 30 60 10
Telex 43041 dynkar s
DYNAPAC
SPARE PARTSCATALOGUE
LC50
SLC050-1EN1
-
Spare Parts Catalogue
We reserve the right to change specifications without
notice.Printed in Sweden.Published catalogue issues valid for these tampers:Catalogue
Issue date Valid for serial numbersI
Valid from roller serial number:
Engines:
*60110102* CC102 DEUTZ F2L 1011/1011F*60121691* CC102
ISUZU*6019XXXX* CC102 ISUZUSLC050-1EN1
Vibrating tamperLC 50
S-10301-1 Replaced by S-10301-2S-10301-2 Replaced by
S-10301-3S-10301-3 1990-05 Replaced by SLC050-1EN1SLC050-1EN1
1999-11ROBIN Petrol EC 08 D
-
II
ORDERING SPARE PARTSTo avoid errors in delivery, please give the
followinginformation when ordering spare parts:1. Type of
machine.2. Roller serial number.3. Quantity required.4. Part
number.5. Parts denomination.6. Dimensions when ordering per
length.RESERVDELSBESTLLNINGFljande uppgifter ska lmnas vid bestllning
av reserv-delar fr att undvika leveransfel:1. Maskintyp.2. Vltens
serienummer.3. Antal av nskad reservdel.4. Reserdelens
artikelnummer.5. Reservdelens benmning.6. Mttuppgifter vid
bestllning av metervara.ERSATZTEILBESTELLUNGZur Vermeidung von Fehllieferungen sind bei
der Bestel-lung von Ersatzteilen folgende Angaben zu machen:1.
Maschinentyp.2. Herstellungsnummer.3. Bestellmenge. (Quantity)4.
Ersatzteilnummer. (Part N)5. Ersatzteilbenennung. (Denomination)6.
Massangaben bei Bestellung von Meterware.ORDINI DI RICAMBIPer evitare errori nelle consegne di ricambi,
Vi preghiamodi comunicarci le seguenti informazioni al momento
dell’ordinazione:1. Tipo di macchina.2. Numero di serie della
macchina.3. Quantit dei pezzi desiderati. (Quantity)4. Numero di
codice del pezzo. (Part N)5. Descrizione del pezzo di ricambio.
(Denomination)6. Misura, in caso di ordine per metro.PEDIDO DE RECAMBIOSPara evitar errores en las entregas, debern
indicarse lossiguientes datos al hacer un pedido de recambios:1.
Tipo de mquina.2. Nmero de serie.3. Cantidad de piezas deseadas.
(Quantity)4. Nmero de artculo de la pieza de recambio. (Part N)5.
Denominacin de la pieza. (Denomination)6. Indquese la medida al
solicitar un artculo que seexpide por metros.
COMMANDE DE PIECES DE RECHANGELes indications suivantes doivent
tre fournies lors de lacommande de pices de rechange, afin d’viter
toute erreurde livraison:1. Type de machine.2. Numro de srie.3.
Quantit dsire de pice de rechange. (Quantity)4. Numro de la pice de
rechange. (Part N)5. Dnomination de la pice de rechange.
(Denomination)6. Longueur en cas de commande au mtre.YOUR AGENT/DEALER:
-
III
Notes
GROUP PAGE NOTESPARTS SERVICEINFO INFO
Changes
31
1
Text pagesThe text pages is structured as thepicture on the
right.1. This is the remarks forspecific items and the
descriptionsof the remarks is at the bottom ofthe parts list.2.
Parts indicated by a dot andmoved to the right are includedwhen
buying the assembled unitabove.3. Spare parts and service codefor a
specific part, mainly forinternal use at Svedala Dynapac.»A» =
Service part, «B» = Fastmoving part, «C» = Suggestedexchanged part
and «D» = Regularspare part.2
-
Svedala IndustriBox 4004, SE-203 11 Malm, Sweden
Telephone Int +46 40 24 58 00. Telefax Int +46 40 24 58 78
Svedala Crushing & ScreeningMalm, SwedenPhone: +46 40 24 58
00Fax: +46 40 24 58 75Svedala Conveyor BeltingMalm, SwedenPhone: +46 40 24 58 00Fax:
+46 40 24 58 65Svedala Wear ProtectionMalm, SwedenPhone: +46 40 24 58 00Fax:
+46 40 24 58 65Svedala Compaction & PavingMalm, SwedenPhone: +46 40 24 58
00Fax: +46 40 97 22 70Svedala GrindingYork, PA, USAPhone: +1 717 843 8671Fax: +1 717
845 5154Svedala Pumps & ProcessMalm, SwedenPhone: +46 40 24 58
00Fax: +46 40 24 58 65Svedala Pyro SystemsWaukesha, WI, USAPhone: +1 414 798 6200Fax:
+1 414 798 6211Svedala Bulk Materials HandlingPittsburgh, PA, USAPhone: +1 412
269 5000Fax: +1 412 269 5050SVEDALA WORLDWIDE
AustraliaPhone +61 2 9748 1777Fax +61 2 9748 1939
AustriaPhone +43 1 813 65 08Fax +43 1 812 14 23
BelgiumPhone +32 2 481 09 60Fax +32 2 481 09 61
BrazilPhone +55 152 25 28 11Fax +55 152 25 33 90
CanadaPhone +1 613 962 34 11Fax +1 613 962 97 92
ChilePhone +56 2 232 43 65Fax +56 2 232 26 91
ChinaPhone +86 10 65 76 55 82Fax +86 10 65 76 54 38
The Czech RepublicPhone +42 5 74 40 26Fax +42 5 74 40 26
DenmarkPhone +45 53 54 40 11Fax +45 53 54 41 42
EstoniaPhone +372 65 654 11Fax +372 65 640 28
FinlandPhone +358 9 22 19 50Fax +358 9 22 19 52 92
FrancePhone +33 1 64 42 59 00Fax +33 1 64 07 91 81
GermanyPhone +49 2102 49 07 0Fax +49 2102 49 07 10
GhanaPhone +233 21 22 96 91Fax +233 21 22 96 91
HongkongPhone +852 25 27 55 45Fax +852 28 61 26 52
HungaryPhone +36 1 343 22 69Fax +36 1 267 14 64
IndiaPhone +91 11 688 16 59Fax +91 11 688 17 45
IndonesiaPhone +62 21 735 25 92Fax +62 21 735 25 94
ItalyPhone +39 2 90 35 41Fax +39 2 90 37 66 00
JapanPhone +81 3 56 88 16 21Fax +81 3 56 88 16 88
LebanonPhone +961 3 23 72 34Fax +961 1 64 12 14
MalaysiaPhone +60 3 632 83 88Fax +60 3 633 69 88
MexicoPhone +52 16 25 13 33Fax +52 16 25 13 30
The NetherlandsPhone +31 78 61 868 88Fax +31 78 61 736 00
New ZealandPhone +64 7 888 56 99Fax +64 7 888 52 44
